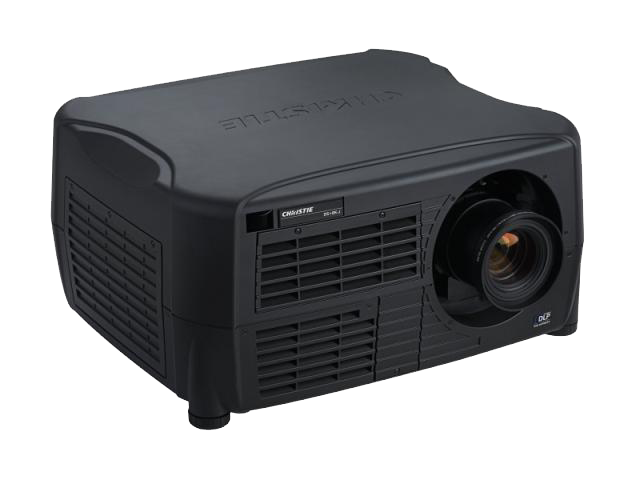

Christie DS+8K





  • 8500 ANSI lumens typical (+/- 10%)
  • 90% brightness uniformity across the screen
Contrast
  • 1600-2000:1 full field (adjustable internal aperture)
Display Technology and Resolution
  • 3-chip DLP®
  • True SXGA+ 1400 x 1050 resolution
Scan Rates
  • Horizontal - 15 kHz to 120 kHz
  • Vertical - 23.97 Hz to 150 Hz
Input Signal Compatibility
  • VGA through to QXGA (2048 x 1536)
  • Supports standard HDTV formats up to 1080p
  • Multi-standard video decoder
  • Horizontal and vertical scaling, all inputs
Inputs, Control and Networking
  • RGBHV/YPbPr via 5 BNC
  • DVI-I - digital/analog RGB/YPbPr (HDCP)
  • One composite video, one S-Video
  • Two option slots for analog/digital modules
  • 3 RS-232 ports and 1 RS-422 port
  • On-board ChristieNET™ connectivity (RJ45)
  • Built-in backlit keypad and IR remote control
Advanced Feature Set
  • Auto set-up, power-up feature
  • Menus in five languages
  • On-screen help
  • 50 channel memories
  • Built-in edge-blending
  • Comprehensive Color Adjustment (CCA™)
  • Optional ChristieTWIST™ image warping
Lens Mount
  • Motorized horizontal and vertical offset
  • Tool-free lens insertion system
  • Tilt adjustment
  • Built-in light shutter
Lamp
  • 1.2kW CERMAX® Xenon pre-aligned lamp module
  • 1500 hours (typical) lifetime
Light Output Control (LITELOC™)
  • "Auto Brightness" (Intensity), "Lamp Conserve" (Power), "Max Brightness" modes
Power Requirements
  • 200 VAC to 240 VAC +/- 10% @ 50/60 Hz
  • Power consumption: 2000W maximum
  • Thermal dissipation: 6825 BTU/hr
  • Operating current: 10A @ 200V
Dimensions
  • Weight: 75 lb (34.1 kg) (excluding lens)
  • Shipping weight: 120 lb (54 kg)
  • Size: 26"W x 22.3" L x 12.3"H (660mm W x 566mm L x 313mm H) (excluding lens)
Standard Accessories
  • IR keypad (w/batteries)
  • Line cord
  • User manual
Optional Accessories
  • Fixed lenses: 0.73:1, 1.2:1
  • Zoom lenses: 1.45-1.8:1, 1.8-2.5:1, 2.5-4.5:1, 4.5-7.3:1
  • ChristieTWIST™ Image Warping and Edge-Blending module
  • Input modules - Dual SD/HD-SDI, DVI and legacy interface modules
  • Wired remote control
  • Remote IR sensor
  • Ethernet, RS-232, RS-422 cables
  • Service manual
  • KoRE™ 10-bit librarian
  • Lens adapter (for competitive lenses)
Operating Environment
  • Temp: 40 to 95° F (5 to 35° C)
  • Humidity: 20 - 80% non-condensing
Regulatory Approvals
  • UL/CSA/IEC 60950 (3rd edition)
  • FCC Class A, CE, CCC (pending)
  • This product conforms to all relevant European directives, standards, safety, health and environmental concerns
